Robustel EV8100 - Battery Backup 4G Router

Robustel EV8100 - Battery Backup 4G Router

The EV8100 is part of Jola’s PSTN replacement toolkit that is designed for lift line PSTN replacement enabling customers to achieve EN 81-28 compliance.

However, it is not exclusively for use in lift lines, there are multiple use-cases for this router, primarily because of the inbuilt battery backup. This makes it a useful option wherever anyone might need resilient 4G connectivity.

Battery back-up

Two 18650 lithium batteries are included delivering 8 hours in standby or 4 hours of talk time.

Use with Voice

· Supports SIP and VoLTE
· Order on Mobile Manager with Jola SIP Overlay for a zero-touch, fully configured solution

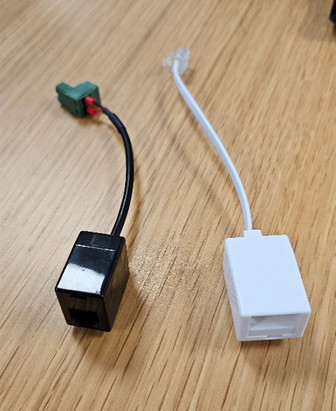

When used in lift lines most customers will wire directly in to the FXS interface. To plug an analogue phone in to the router the cables in the photo are included with the router



Black RJ11 Converter- Allows an analogue phone requiring an RJ11 Socket to be plugged into the device

If a BT Socket is required plug the black RJ11 Converter into the EV8100 and then the White BTRJ11 into the Converter





Monitoring and alerting

Resellers using RCMS (Robustel Cloud Manager Service) can take advantage of features specific to the EV8100.

The ‘Basic’ RCMS license (free of charge) allows the user to view all call records, whether the battery is being used, battery charge etc.

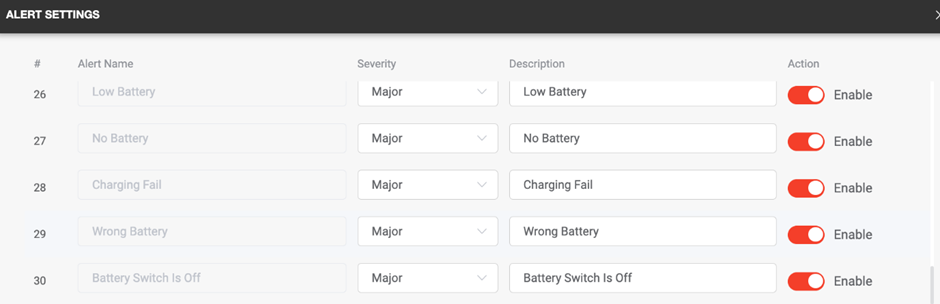

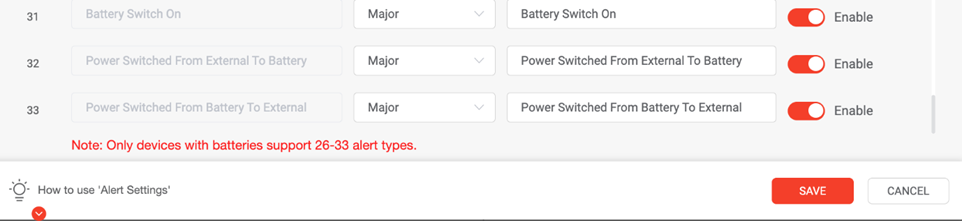

The ‘Essentials’ RCMS license (chargeable) allows you to set up alerting for all the EV8100 options listed below
