Robustel - Port forwarding

Robustel - Port forwarding

Port forwarding on the Robustel can be configured from the router web interface


Once logged in as admin, click on:-

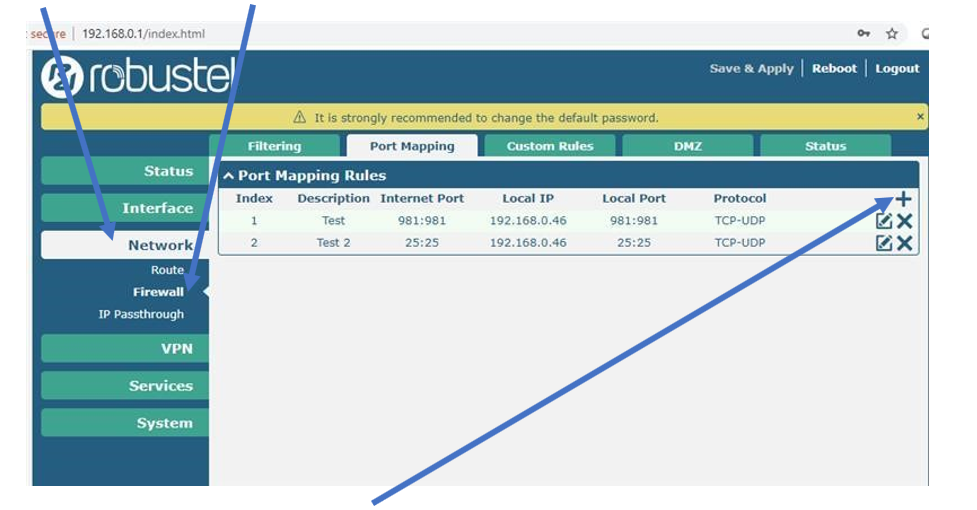

Once in the screen click on the + icon

Complete the required source and destination information

Please note – for the port information (Internet and Local) you will need to enter port:port

In the example above, the ports are 25 and 981 so when adding the rule, the ports were added as 25:25 and 981:981

Click Submit (bottom right)

Click Save & Apply (top right)
