Robustel - Antenna Configuration

Robustel - Antenna Configuration

Please find your device type below

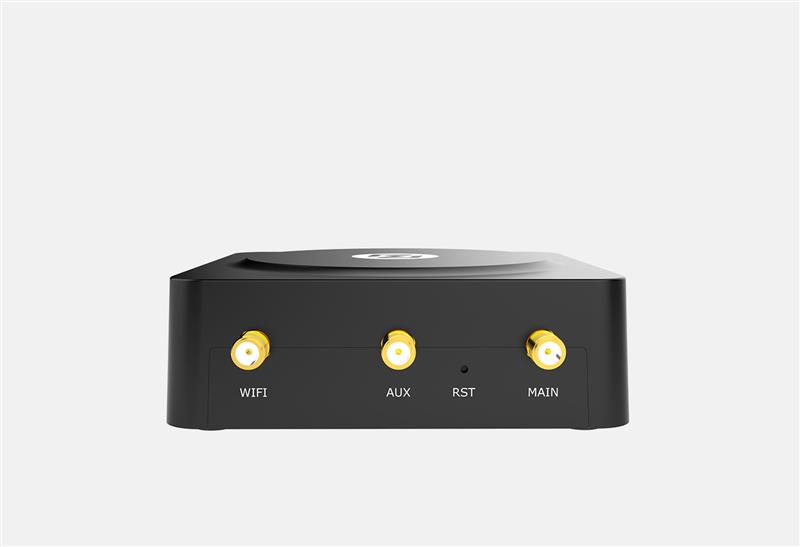

Robustel R1510

By default, the Robustel R1510 is shipped with 2 x 4G and 1 x WiFi Antennas.
The WiFi antennas (Labelled E003169) have a female connector that connects to the male connector labelled WiFi
The 4G antennas (Labelled E003168) have a male connector that connects to the female connectors labelled Main and Aux

A black box with yellow connectorsDescription automatically generated


Robustel R1520

By default, the Robustel R1510 is shipped with 2 x 4G and 1 x WiFi Antennas.
The WiFi antennas (Labelled E003169) have a female connector that connects to the male connector labelled WiFi
The 4G antennas (Labelled E003168) have a male connector that connects to the female connectors labelled Main and Aux
A black box with yellow connectorsDescription automatically generated

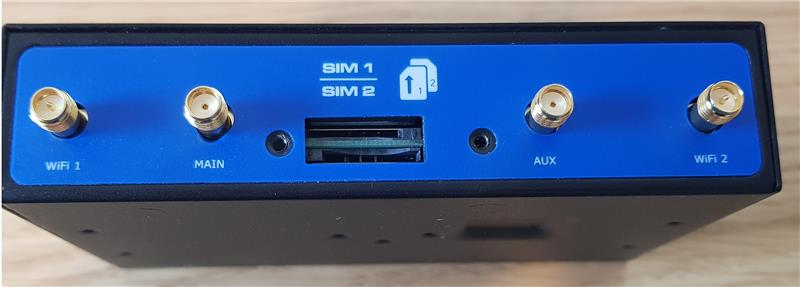

Robustel R2000

By default, the Robustel R2000 is shipped with 2 x 4G and 1 x WiFi Antennas.
The WiFi antennas (Labelled E003169) have a female connector that connects to the male connector labelled WiFi - nb. there is no supplied antenna for WiFi2 (where WiFi2 connector is present on the router)
The 4G antennas (Labelled E003168) have a male connector that connects to the female connectors labelled Main and Aux


A close up of a deviceDescription automatically generated

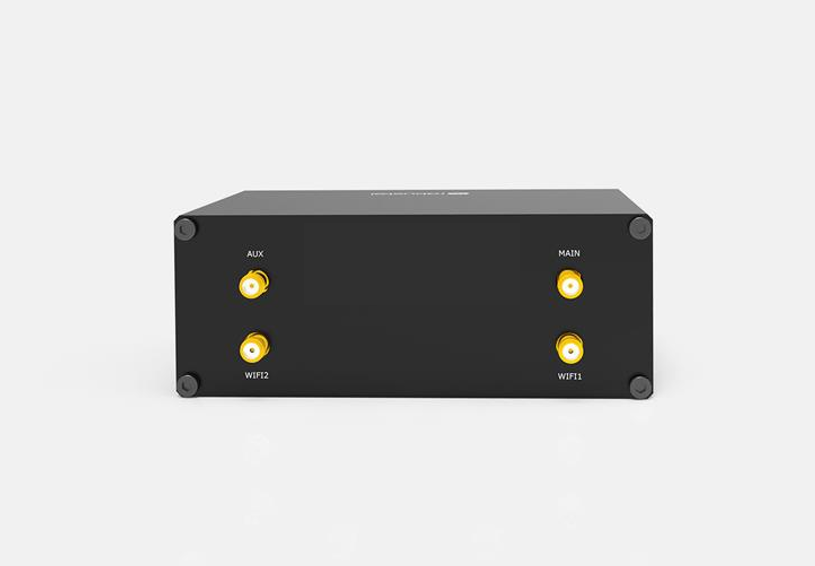

Robustel R2110

By default, the Robustel R2110 is shipped with 2 x 4G and 1 x WiFi Antennas.
The WiFi antennas (Labelled E003169)  have a female connector that connects to the male connector labelled WiFi - nb. there is no supplied antenna for WiFi2 (where WiFi2 connector is present on the router)
The 4G antennas (Labelled E003168) have a male connector that connects to the female connectors labelled Main and Aux

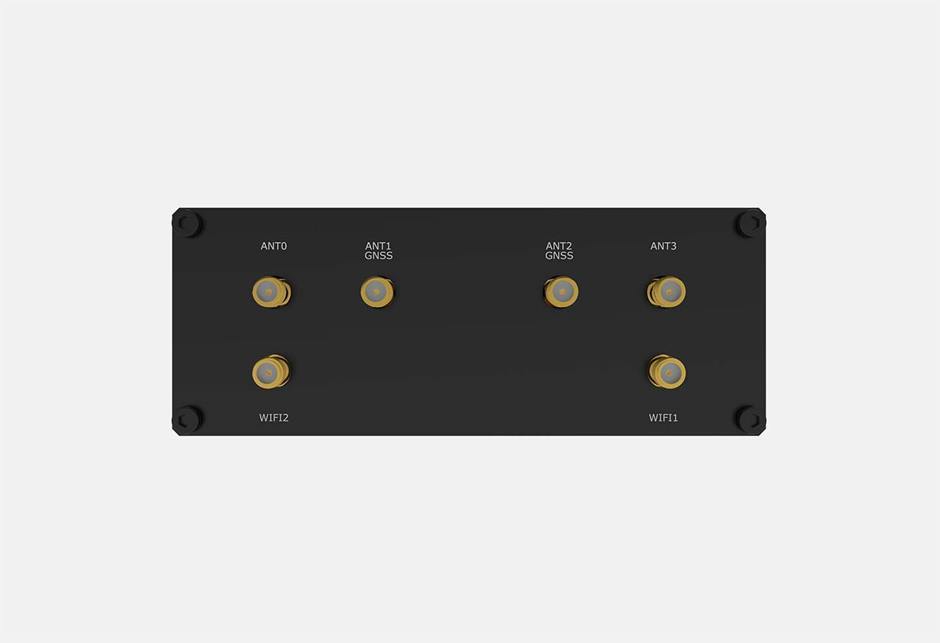

Robustel R5020

By default, the Robustel R5020 is shipped with 4 x 4G and 2 x WiFi Antennas.
The WiFi antennas (Labelled E003142) have a female connector that connects to the male connector labelled WiFi
The 4G antennas (Labelled E003174) have a male connector that connects to the female connectors labelled Ant0 – Ant3
A black rectangular object with gold colored connectorsDescription automatically generated
